Description

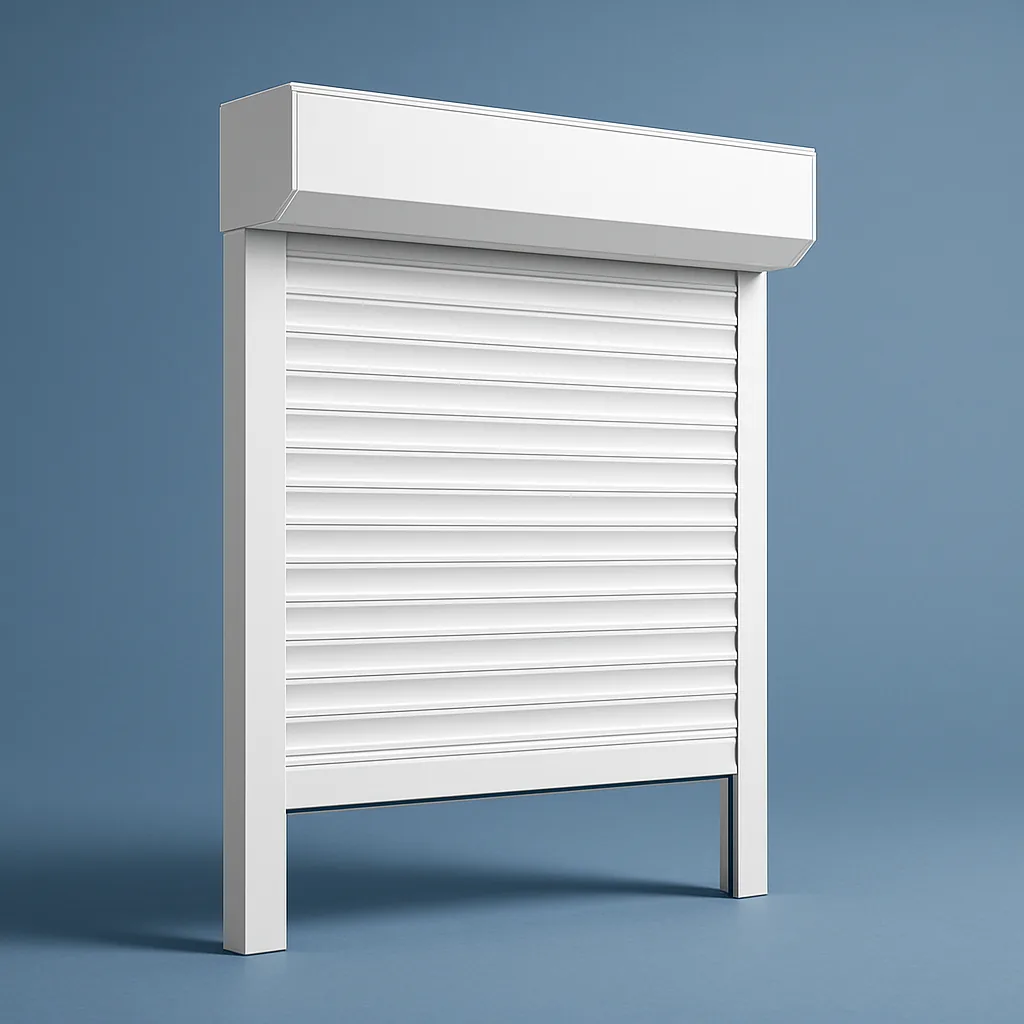

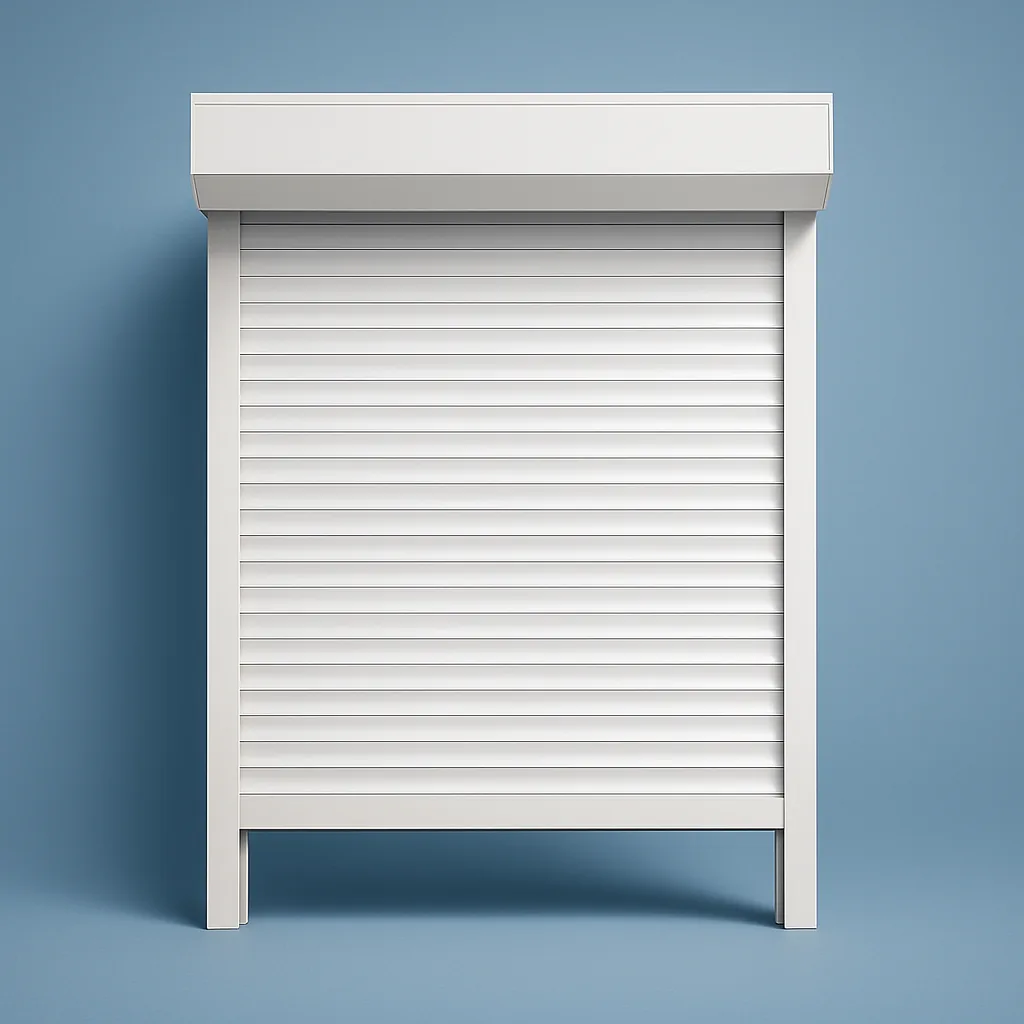

An electric rolling security shutter for a standard 48″ × 48″ window opening, driven by a hardwired Gaposa motor for quiet, one-touch operation from a wall switch. A favorite among motorized security shutters, it pairs insulated aluminum slats with effortless electric control for security, sun, and energy savings. Made in the USA, white, ships in about 7 days.
Don’t have a 48″ × 48″ opening? Custom sizes are available — request a free quote and we’ll build it to fit.
Our team is standing by to answer your questions, give you a quote, and find the best solution for your project.
☎ Call (480) 921-0200 or request a free quote.
Available colors (same price)
Slat options

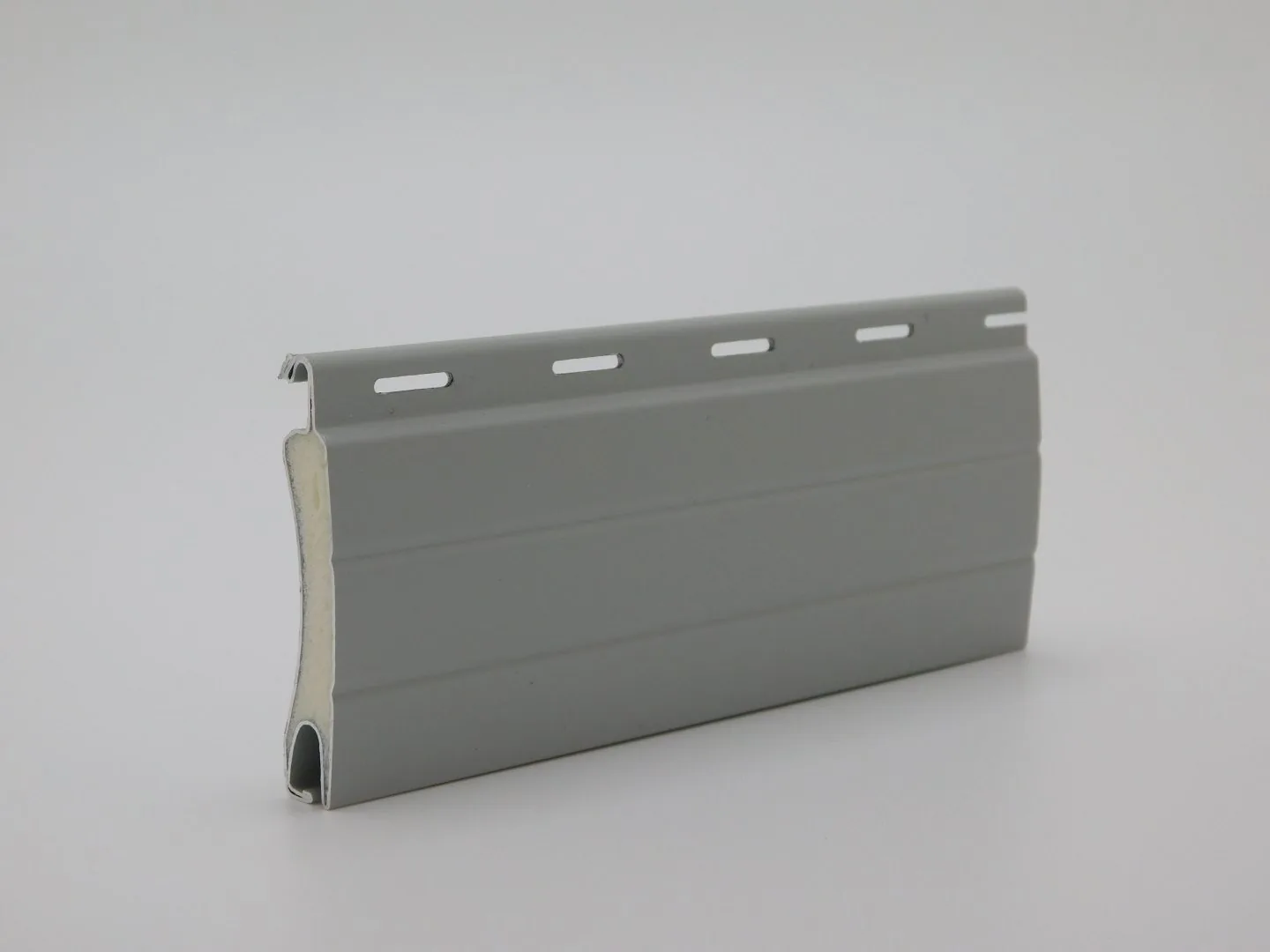

- 38mm Insulated (this model) — Slim 38 mm insulated slat — security plus noise & thermal insulation
- 55mm Insulated — Larger 55 mm insulated slat for bigger openings (up to 18 ft wide)
- 63mm Single Wall — Extruded aluminum, maximum strength — hurricane-rated up to 20 ft
- 63mm Single Wall (Perforated) — Vented single-wall slat — lets in light and air while staying secure
Operator options
- Strap (Pull or Crank) — Manual — pull strap or hand crank
- Spring Assisted — Spring-assist lift with a key lock
- Gear/Wand — Manual geared wand for larger shutters
- Hardwired Motor (this model) — Wired to a wall switch for one-touch operation
- Remote Motor — Operated by a handheld remote
- Solar-Powered Motor — Solar-charged motor — no wiring needed
- Battery-Powered Motor — Rechargeable battery motor — no wiring needed
Specifications
| Slat type | 38mm Insulated |
| Composition | Rolled aluminum with an insulating foam core |
| Slat height | 1.5 in (38 mm) |
| Slat thickness | 0.4 in |
| Insulation | Noise + thermal (R-value) insulated |
| Operation | Hardwired motor (Gaposa) |
| Color | White |
| Clear opening (this model) | 48″ × 48″ |
| Overall unit size | 52⅛” W × 56⅝” H |
| Max custom size (this slat) | 12 ft W × 12.5 ft H |
| Mounting | Surface |
| Curtain weight | 16.77 lbs |
| Lead time | ~7 days |
| Country of origin | USA — Tempe, Arizona |
| Warranty | 5-year shutter parts · 5-year motors · 2-year electronic components · 1-year labor |
| Hurricane rating | This configuration is not hurricane-rated. For hurricane-rated protection, choose our 63mm Single Wall slat (available by custom quote). Request a free quote |
What’s included
- 38mm Insulated curtain (33 slats with light slits + 3 solid), white
- Surface-mount box (6.5″) + H-Mini guide rails + end slat
- Hardwired motor (Gaposa) operator
- U-Channel + installation guide & video access
How it works
Hardwired Gaposa tubular motor (lead exit kept in the box) — wired to a wall switch for one-touch operation.
Common questions
How is the hardwired motor controlled?
The Gaposa tubular motor wires to a wall switch for one-touch open and close. (Requires an electrician to connect to power if one isn’t already present.)
Is this a standard size or custom?
This is a standard, pre-built security shutter for a 48″ × 48″ clear opening, built and shipped fast (about 7 days), exactly as shown. Need a different size or configuration? Request a free custom quote and we’ll build it to fit your exact opening.
How do I know it will fit?
You need a 48″ × 48″ clear opening, plus surface space for the overall unit (roughly 52″ × 57″ for the 38mm models). Not sure? Call us at (480) 921-0200 — our team is standing by to size it for you — or request a free quote.
Can I install it myself?
Yes. Every shutter ships with an installation guide and video. In metro Phoenix we also install locally — request a quote for installed pricing. Questions about installation? Call (480) 921-0200 and we’ll walk you through it.
What’s your warranty?
5 years on shutter parts and motors, 2 years on electronic components, and 1 year on labor — the same coverage for residential and commercial.
Shipping and returns?
Freight is calculated at checkout. Because each shutter is made to order, sales are final except for defects or freight damage reported within 3 business days.
