Start with the opening rather than the profile. Three questions get you there almost every time. How wide is it, because span is the first hard limit and it rules profiles out before anything else does. What is it exposed to, because a north-facing bathroom window and a west-facing slider that takes the full afternoon are not the same job. And how do you want to work it, because manual operation is not available across the range. Answer those three and you are usually down to one profile. The comparison table above puts all four side by side on exactly those points, and a Roll-A-Shield specialist confirms the choice for every opening on your property during your free on-site estimate.

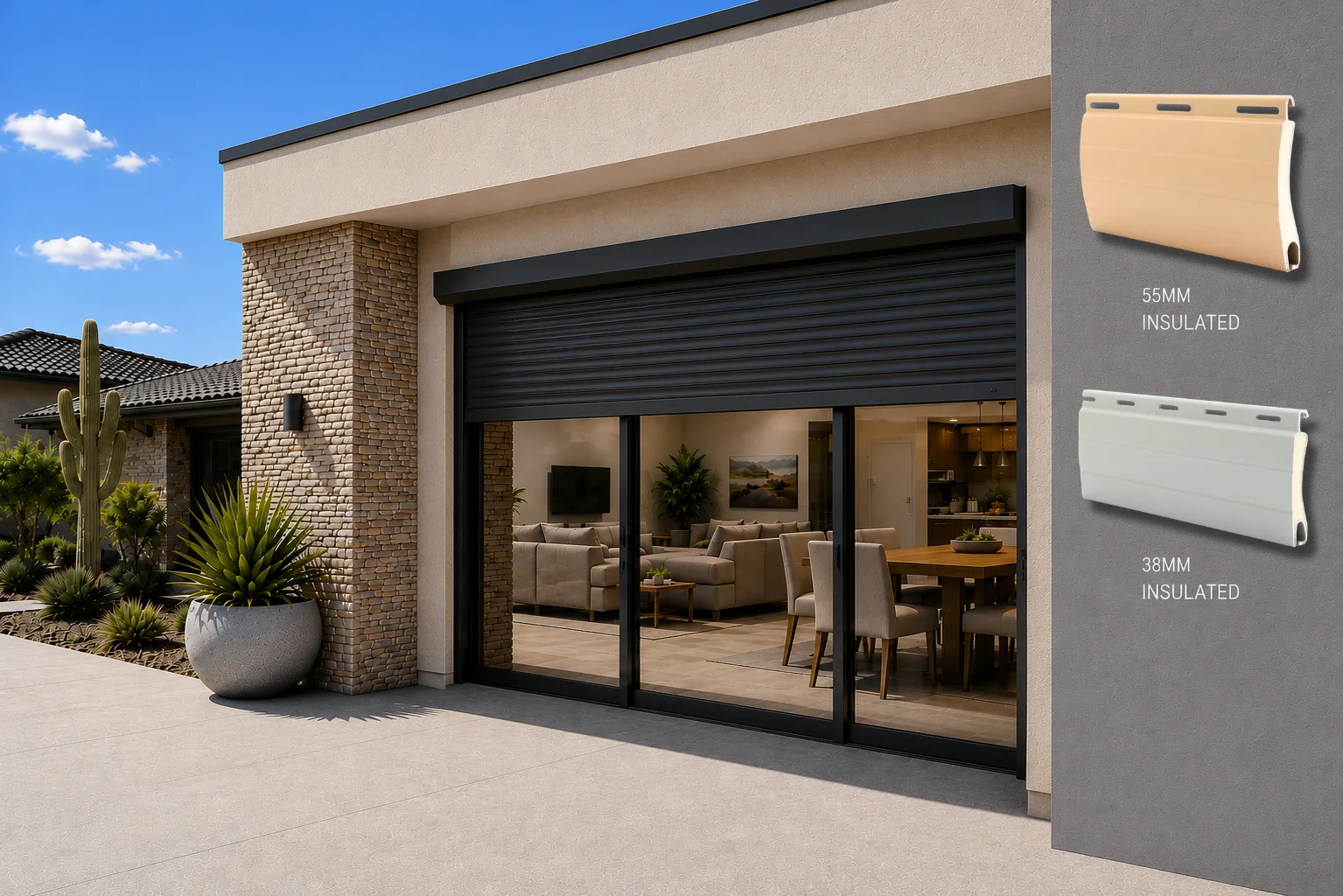

Both are foam-filled aluminum, so both bring thermal and noise insulation to the curtain. The difference is size and what that size buys you. The 38 mm covers openings up to about 12 ft, is the lighter of the two, and rolls into a more compact box, which matters when there is not much headroom above the window. It is also the profile that supports every operator. The 55 mm covers openings up to about 18 ft and carries stronger thermal and noise insulation. In practice, standard windows take the 38 mm and larger windows, patios, and sliders take the 55 mm.

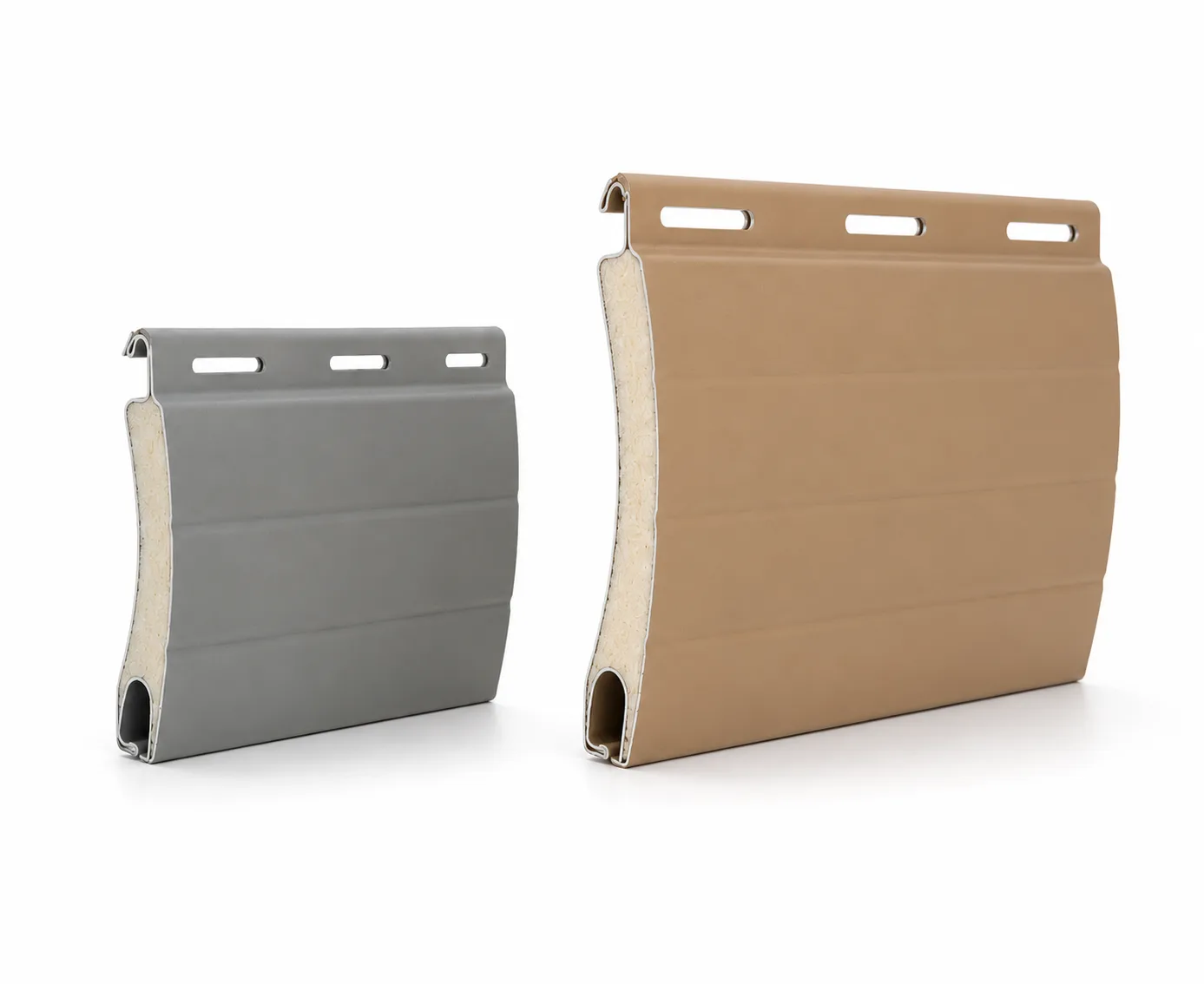

Aluminum on its own conducts heat readily. A foam-filled slat puts an insulating core inside the profile, so the curtain is not simply a sheet of metal sitting in front of your glass. That is the whole point of the two insulated profiles, and it is why both profiles carry a thermal and noise insulation claim. Both things work together on an insulated shutter: the curtain hangs outside the opening, and the core inside the slat does its own job behind that.

The 38 mm insulated slat covers openings up to about 12 ft. The 55 mm insulated slat covers up to about 18 ft. Anything wider is confirmed on site, because span depends on the height of the opening as well as its width.

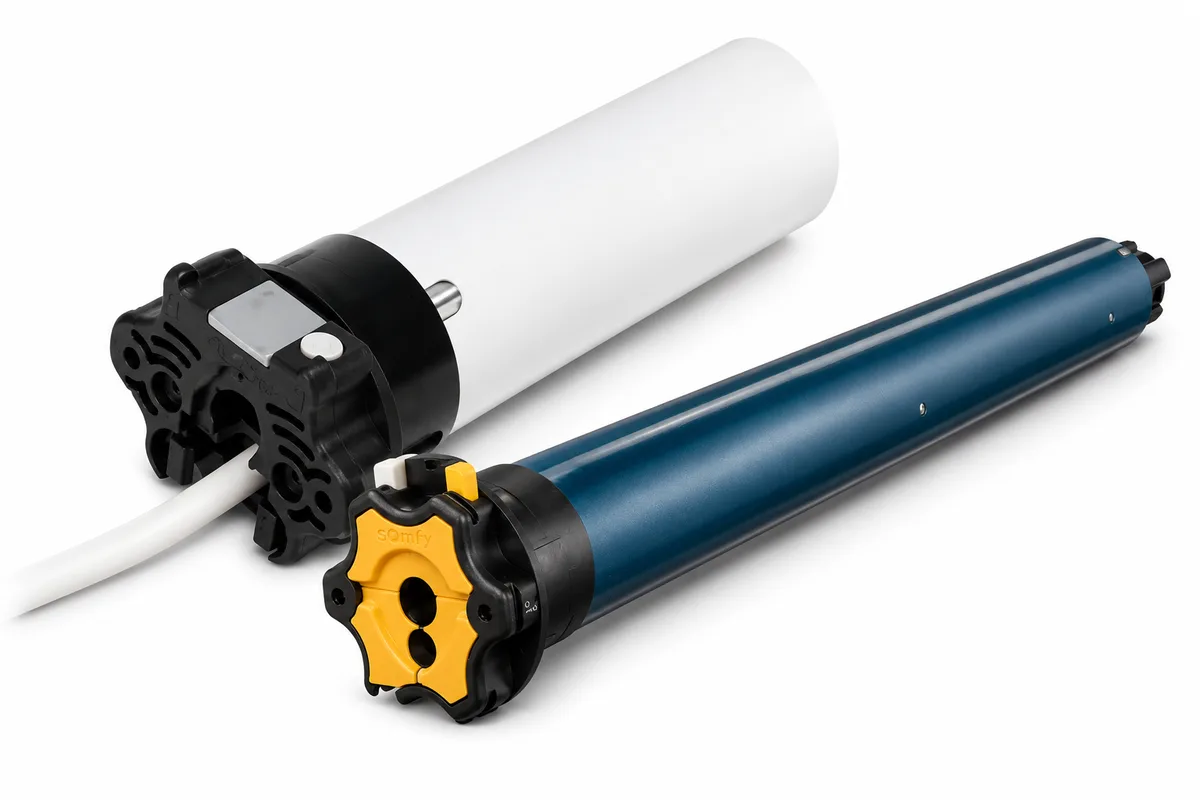

If you want manual operation, the 38 mm insulated slat is the one to ask about. It is the profile that supports every operator, manual and spring included alongside battery and motor. The 55 mm insulated slat is built around motorized operation. Worth knowing either way: a motorized shutter can be specified with a manual override, so losing power does not leave an opening stuck open or shut.

Yes. Every rolling shutter is powder-coated, and the slats and guide rails are finished to match, so the assembly reads as one piece rather than parts bolted together. The finish options are the same across all four profiles, and they are shown on the swatch chart further up this page. Powder coat is the finish that holds up under sustained Arizona UV. On-screen colors are only close approximations, so your specialist can put physical samples in front of you during your free on-site estimate.

It depends on what is already up there, and it is not usually a case of swapping slats on their own. A rolling shutter is a matched assembly: the profile, the box above the opening, the guide rails down each side, and the operator are all sized to work together, so moving to a different profile generally means more than the curtain changes. If you have an existing shutter and you want a different profile on that opening, the quickest route to a real answer is to have someone look at it. Bring it up when you book your free on-site estimate and we will tell you what that opening can take.

Slat selection is one of five factors that move a rolling shutter price, and it is the first one to settle because it constrains the others. The four profiles carry different material costs to begin with, and the profile you land on also decides how wide the curtain can go and which operators are available to it, both of which show up in the quote. Opening size, operation type, motorization and controls, and installation complexity move the number from there. The general range for a single residential window is set out in the pricing section above, and the cost guide breaks every factor down properly.

Lighter finishes reflect more heat than darker ones. That is the functional reason lighter tones are common on Phoenix openings, and it is the thing worth weighing when you pick a finish. Durability is not the deciding factor between one color and another, because every finish is powder-coated and powder coat is what holds up under sustained Arizona UV regardless of the shade. We do not publish a measured temperature difference between finishes, so if that is going to drive your decision, raise it with your specialist during the free on-site estimate rather than working from a number.

West-facing glass takes the hardest sun of the Phoenix day, so two things matter on that opening: a foam-filled profile, and enough span to cover it. If it is a standard window, the 38 mm insulated slat covers it. If it is a large window or a slider, the 55 mm insulated slat handles the wider opening and carries stronger insulation with it. Either way the curtain hangs outside the glass, so the sun is stopped before it gets there. If you motorize it, you can also set a schedule so the shutter closes through the hottest part of the afternoon without anyone being home to do it.
