Insulated Rolling
Shutter Slats
for Security, Privacy,
and Energy Efficiency
Foam-filled aluminum slats help reduce heat transfer, block outside noise, increase privacy, and provide an added layer of security for windows, doors, patios, and storefronts.
Security
Reduction
Insulation
Privacy

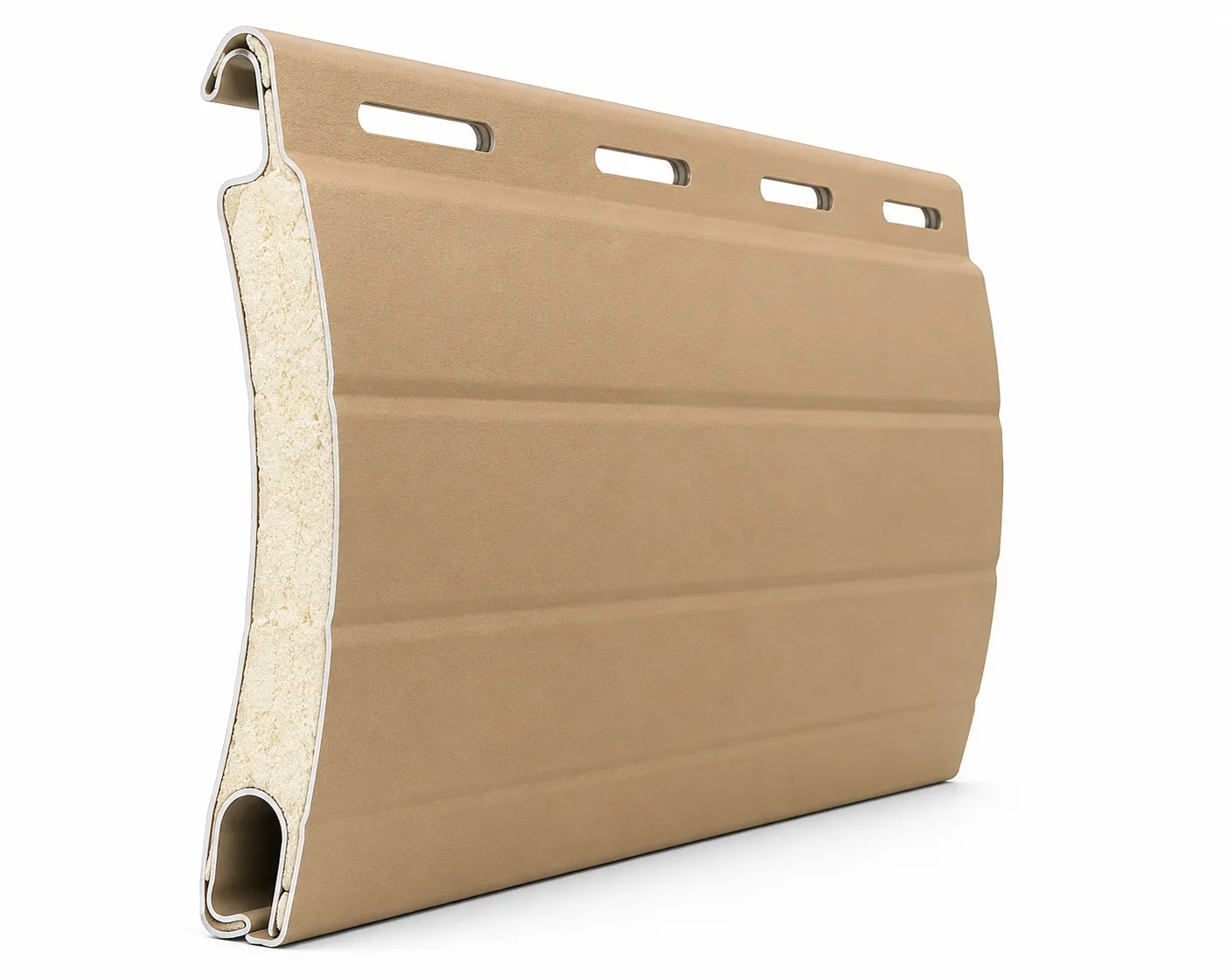

Insulated Slat Construction
What Are Insulated Rolling Shutter Slats?
Insulated rolling shutter slats are aluminum slats built with a high-density foam insulation core. The foam core helps reduce heat transfer, block outside noise, increase privacy, and add strength for an extra layer of security.
What "Insulated" Means
The interior of each slat contains a layer of polyurethane foam, creating an insulating barrier between the interior and the outdoors.

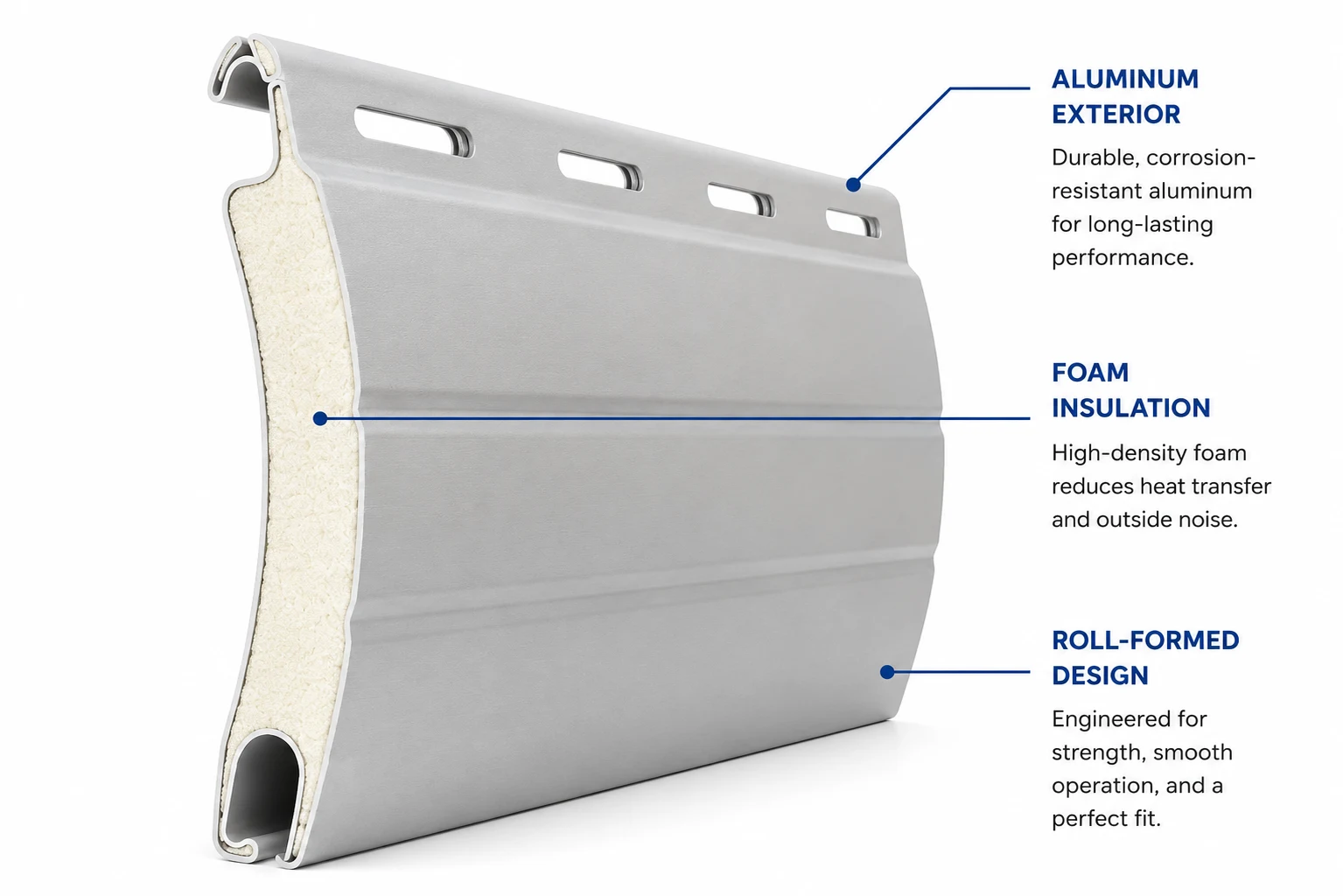

How Insulated Slats Are Constructed
Aluminum is roll-formed into a slat shape and then injected with foam insulation for superior thermal and acoustic performance.
Insulated vs. Extruded Slats
Insulated slats are lighter and offer excellent comfort benefits, while extruded slats are heavier and built for maximum security and hurricane resistance.
Why Property Owners Choose Insulated Slats
They provide a balance of energy efficiency, noise reduction, privacy, and everyday security for residential and commercial properties.
Compare Profiles
Which Insulated Slat Is Right for You?
Two insulated slat profiles, built for different openings. Both deliver reliable comfort, privacy, and security performance.
The 38 mm insulated slat is a compact profile built for smaller windows and openings where a smaller housing box is important.
The 55 mm insulated slat is a larger profile built for wider openings that still need consistent comfort and security performance.
| Feature | 38 mm Insulated | 55 mm Insulated |
|---|---|---|
| Slat Height | 38 mm | 55 mm |
| Max Width | 12.5 ft | 18 ft |
| Max Area | 86.1 sq ft | 129.2 sq ft |
| Slats Per Meter | 27 | 18 |
| Best For | Smaller windows | Large openings |
38 mm Profile

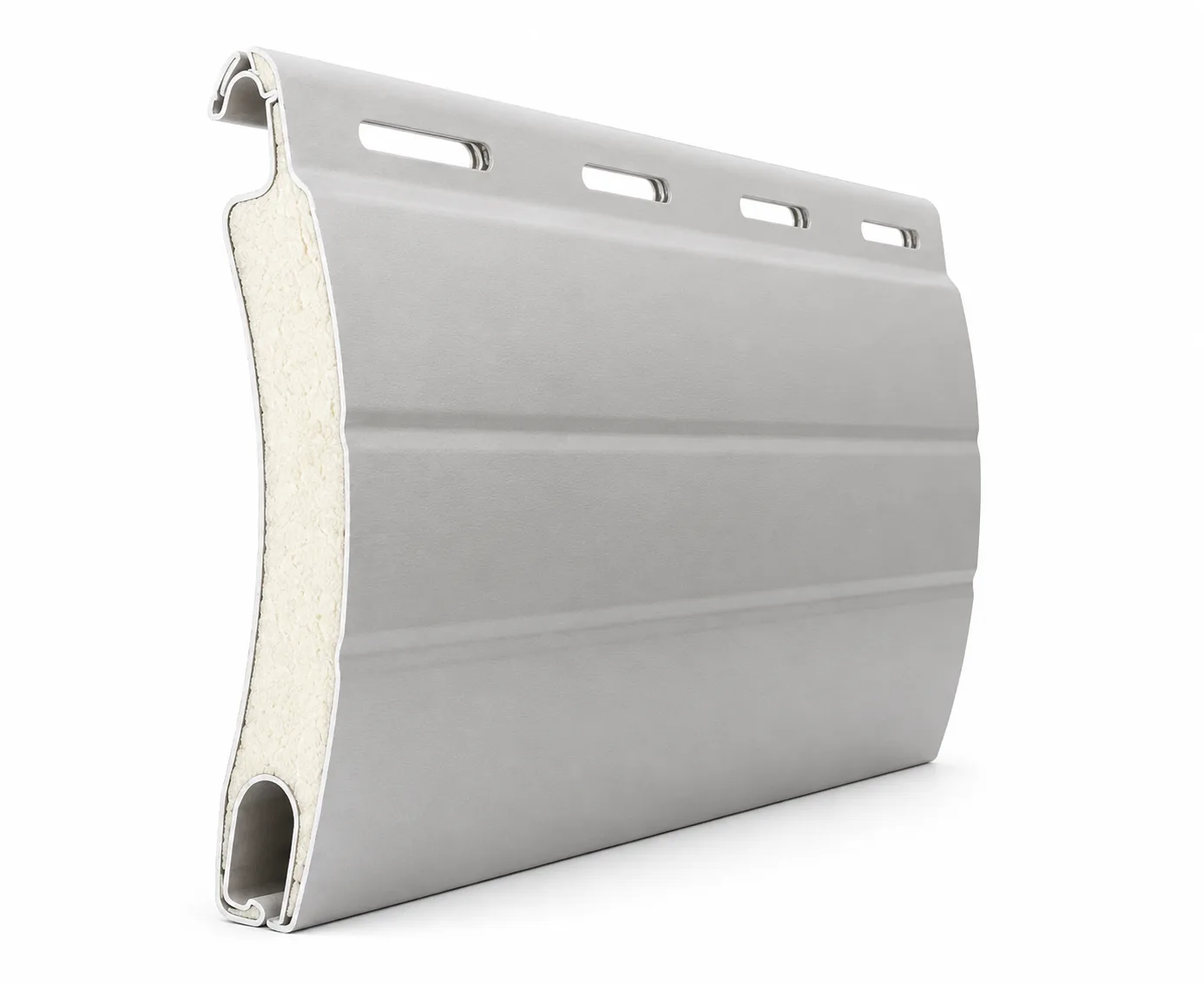

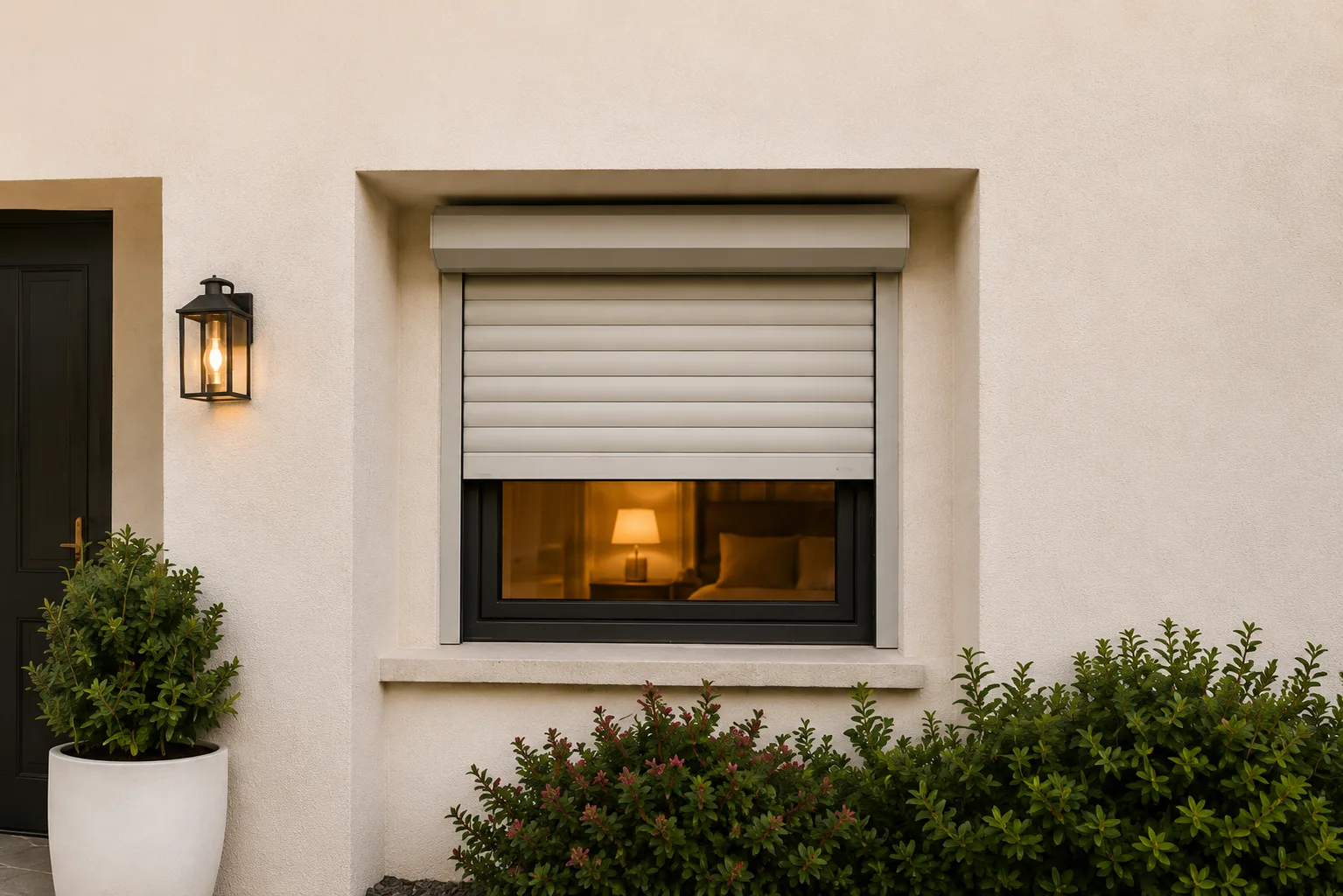

38 mm Insulated Slat
Compact Insulated Protection for Smaller Openings
The 38 mm insulated slat is a solution for windows and openings where a smaller housing box and compact profile matter, without compromising on comfort, privacy, or security.
55 mm Profile

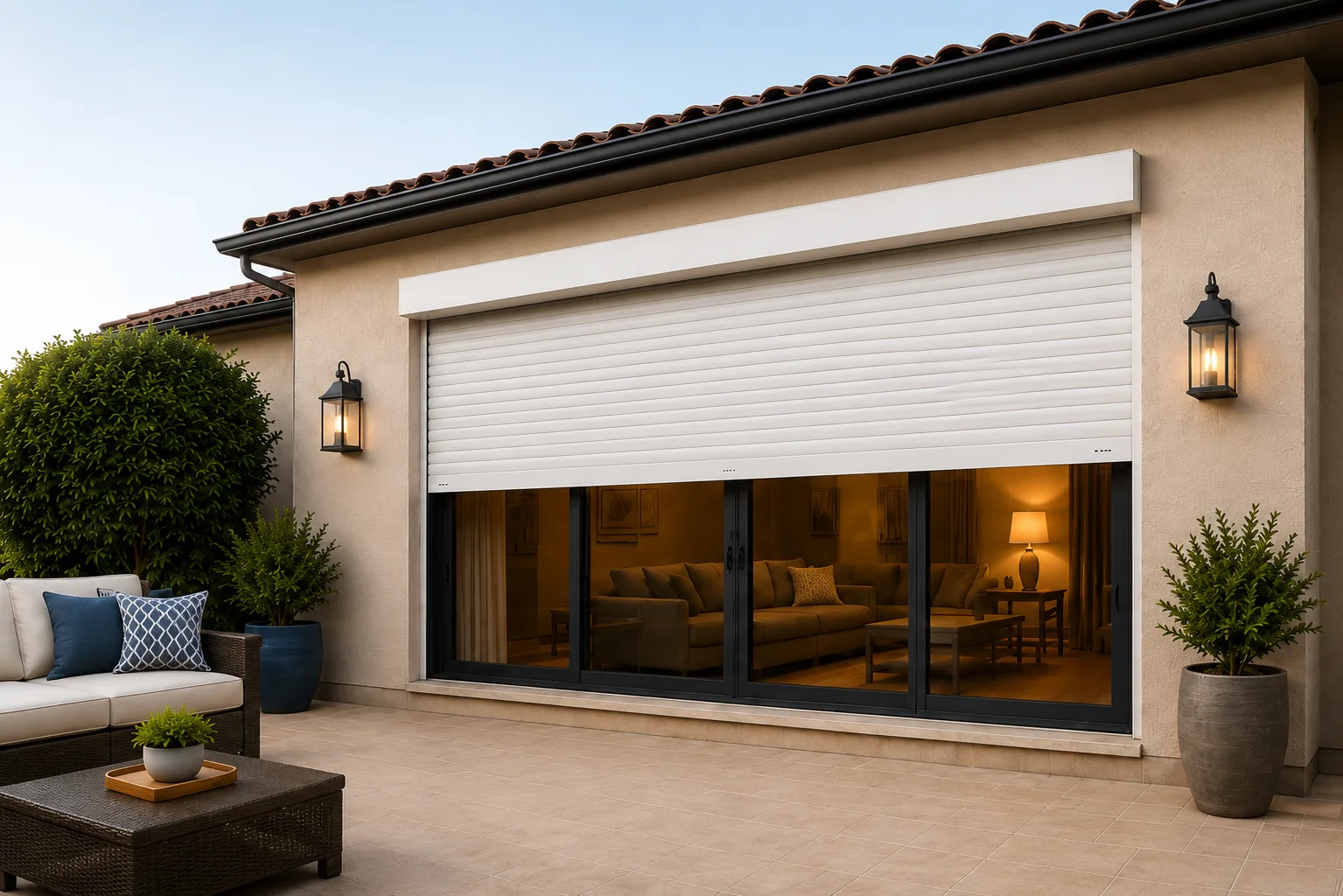

55 mm Insulated Slat
Our Most Popular Insulated Slat for Large Openings
The 55 mm insulated slat is designed for openings up to 18 ft wide and provides thermal and acoustic benefits.
Performance Benefits
Built for Comfort. Designed for Protection.
Engineered to improve energy efficiency, reduce outside noise, enhance privacy, and add an extra layer of security.
Up to 70%
Heat Reduction
heat reduction
Up to 50%
Noise Reduction
noise reduction
Privacy
Blackout capability
Security
Added security barrier
Available Colors
Available in Multiple Finishes
Both insulated slat options are available in seven color finishes.
Multiple Finishes
Choose the finish that best matches your property's exterior.
Fade Resistant
High-quality finishes designed to withstand the elements.
Built to Last
Durable, long-lasting finishes that maintain their appearance.
Seamless Integration
Finishes available for a wide range of exterior colors and materials.
Common Applications
Versatile Protection for Every Space
Roll-A-Shield insulated rolling shutters are suited for a wide range of residential and commercial applications.

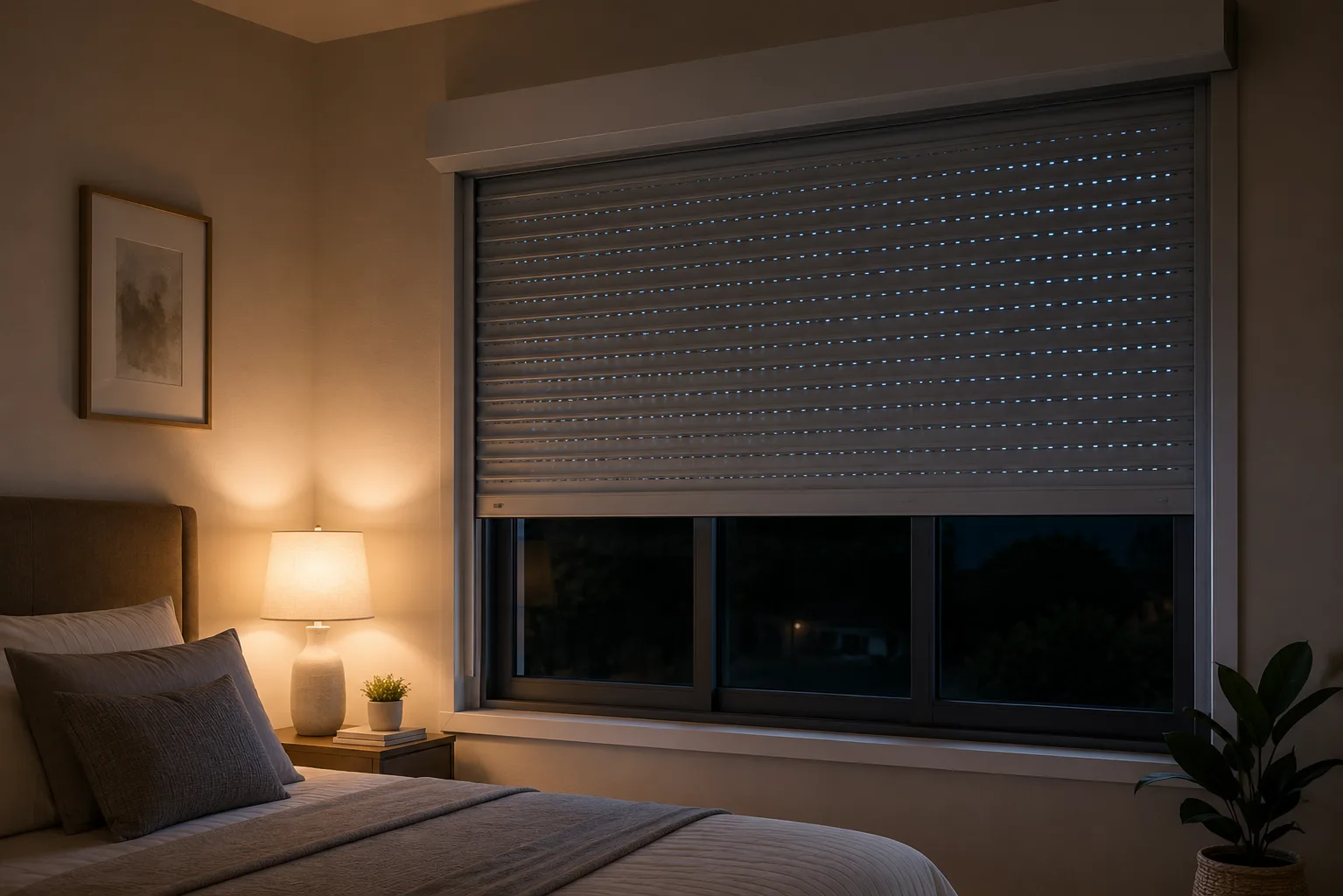

Bedroom Windows

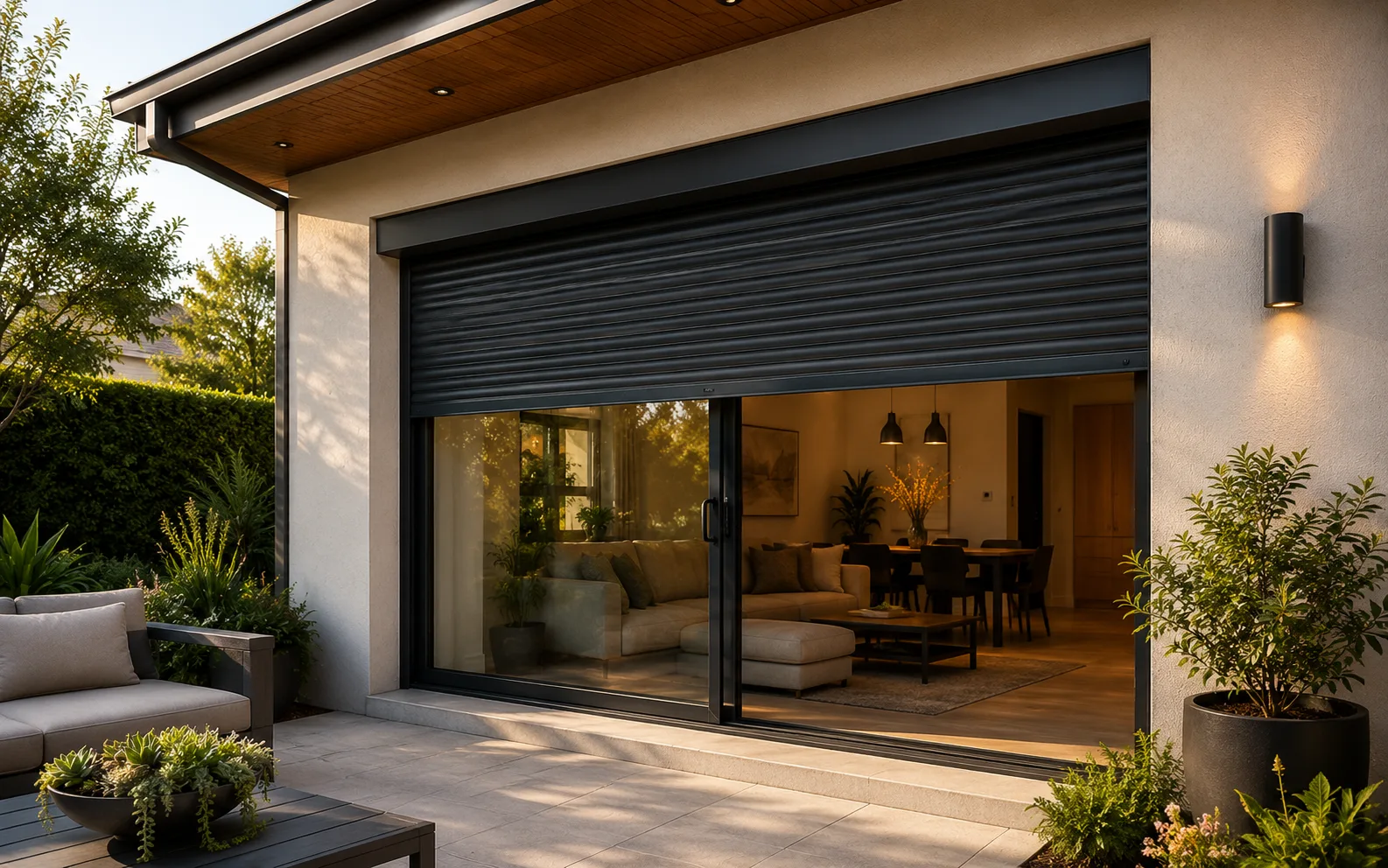

Patio Doors

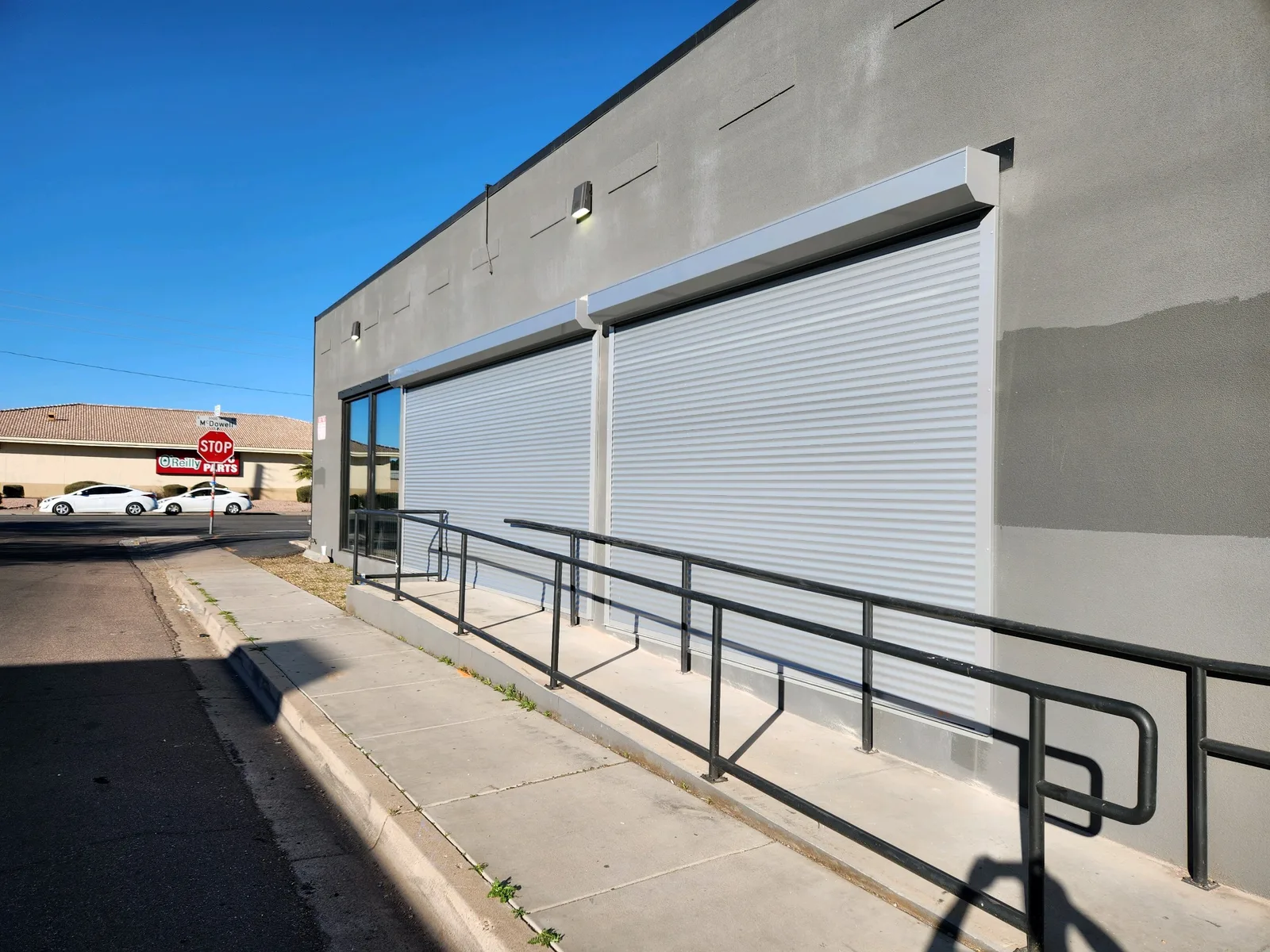

Storefronts

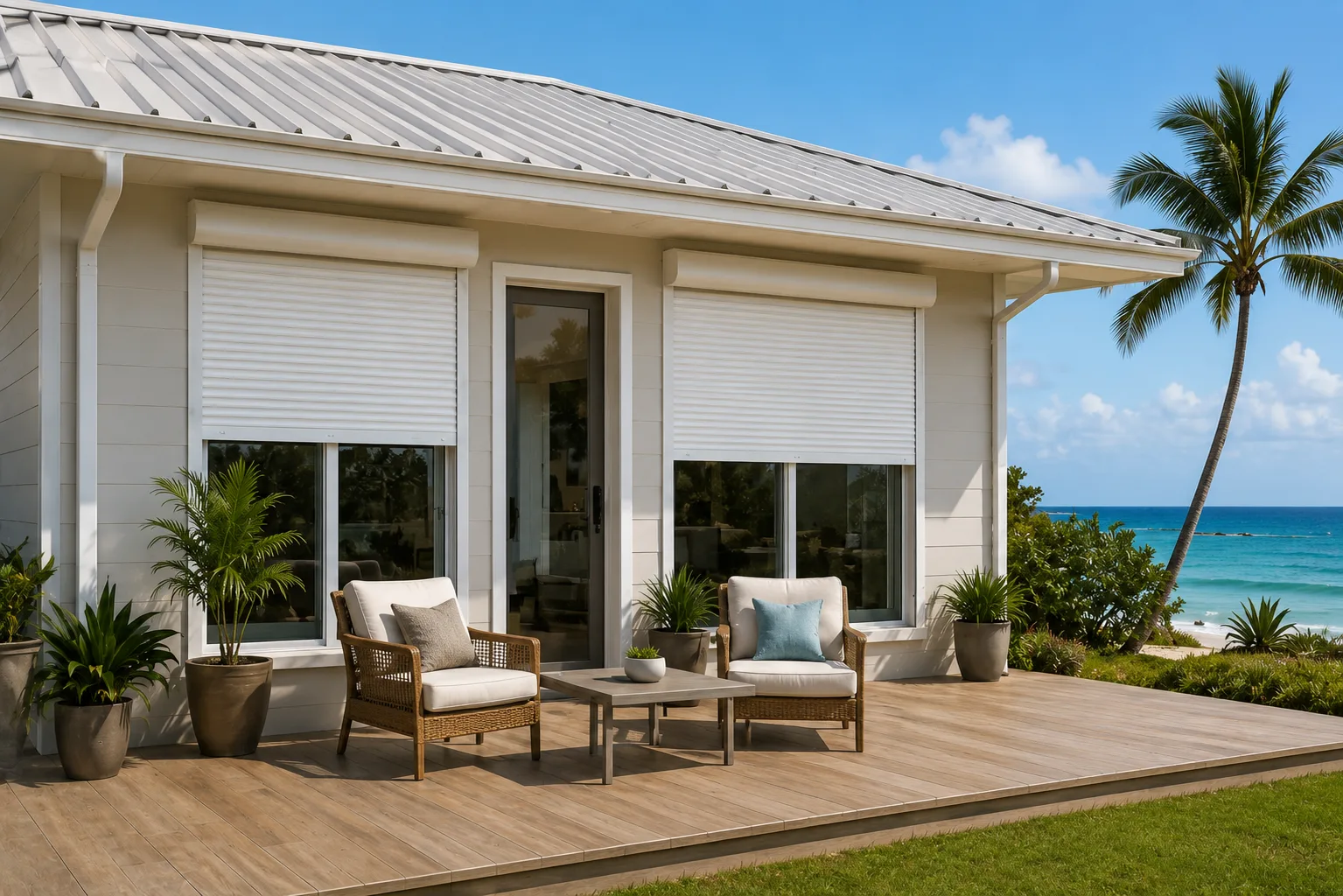

Vacation Properties
Insulated vs Extruded Slats
Built for Performance. Designed for Results.
Compare insulated slats to extruded slats and see the difference in comfort, efficiency, and protection.
| Feature | Insulated Slat | Extruded Slat |
|---|---|---|
| Insulation | Excellent | Moderate |
| Noise Reduction | Excellent | Moderate |
| Weight | Lighter | Heavier |
| Security | High | Maximum |
| Hurricane Rated | No | Yes |
| Best For | Comfort + Security | Maximum Security |
Insulated slats deliver a balance of comfort and protection. Choose the slat that fits your needs and get consistent, long-term performance.
Frequently Asked Questions
Frequently Asked Questions.
Get answers to the most common questions about insulated rolling shutters.
01What is an insulated rolling shutter slat?
An insulated rolling shutter slat is an aluminum slat with a high-density polyurethane foam core. The foam layer sits between two aluminum walls, creating an insulating barrier that helps reduce heat transfer, block outside noise, and add rigidity to the slat.
02What is the difference between 38 mm and 55 mm insulated slats?
The 38 mm insulated slat is a compact profile built for smaller windows and openings up to 12.5 ft wide, with a maximum area of 86.1 sq ft. The 55 mm insulated slat is a larger profile built for openings up to 18 ft wide, with a maximum area of 129.2 sq ft. Both use the same insulated aluminum construction; the difference is size and coverage.
03Which slat is better for patio doors?
The 55 mm insulated slat is generally the better choice for patio doors and other large openings. Its larger profile is engineered to span wider widths while maintaining structural performance, while the 38 mm slat is intended for smaller windows.
04Do insulated slats reduce heat?
Yes. The foam core in an insulated slat creates a thermal barrier that can reduce heat transfer by up to 70 percent compared to an unprotected window or door, helping lower cooling costs during hot months.
05Do insulated slats reduce noise?
Yes. The foam insulation layer also acts as a sound barrier, and insulated slats can reduce outside noise levels by up to 50 percent when fully closed.
06Are insulated slats hurricane rated?
No. Insulated slats are built for comfort, privacy, and everyday security, not for hurricane-rated wind and impact resistance. For hurricane-rated protection, Roll-A-Shield also manufactures extruded aluminum slats, which are heavier and built for maximum security.
07Are insulated slats available in vented versions?
The 38 mm insulated slat is available in both vented and non-vented options, so airflow can be maintained even when the shutter is closed. The 55 mm insulated slat is available in a non-vented profile built for maximum coverage.
08How wide can insulated rolling shutters be?
The 38 mm insulated slat supports openings up to 12.5 ft wide, and the 55 mm insulated slat supports openings up to 18 ft wide. Openings wider than a single shutter can typically be divided into multiple shutter sections.
09What colors are available?
Insulated slats are available in seven finishes: white, sand, beige, grey, metallic, bronze, and black, so the shutter can be matched to a property's existing exterior colors.
10How long do insulated rolling shutters last?
Roll-A-Shield insulated rolling shutters are built for long-term durability, and every shutter we manufacture is backed by our standard warranty, covering shutter parts and motors for 5 years and electronic components for 2 years. Most systems remain in daily use for many years with only routine maintenance.
